01
The core diesel configurationCAT C7.1 diesel

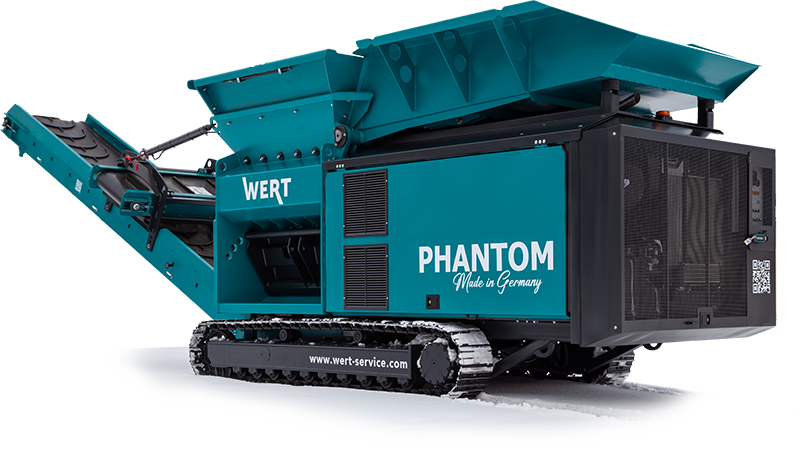

PHANTOM 770 Standard
A 205 kW CAT-powered PHANTOM for operators who need the full interchangeable-shaft platform with the core diesel configuration.
- Power
- 205 kW
- Weight
- 20 t
- Torque
- 2 × 129,000 Nm
WERT PHANTOM 770
One machine.
Multiple material streams.
Less downtime.

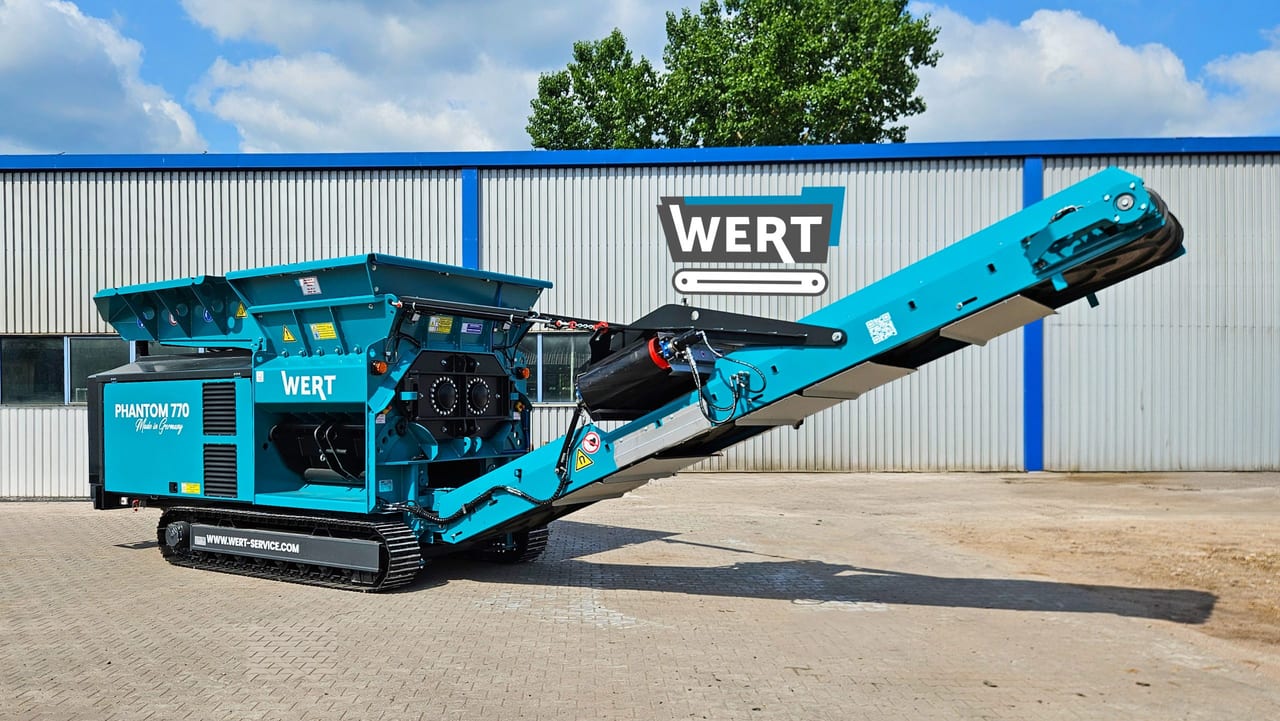

Meet the WERT PHANTOM 770: a German-built mobile twin-shaft shredder for assessed bulky waste, commercial waste and construction & demolition (C&D) waste, as well as wood, green waste, tyres, paper and selected light scrap.
Explore the PHANTOM 770 →German engineering × Dedicated UK enquiry route
PHANTOM
770
TORQUE2 × 129,000 Nm
SHAFT LENGTH1,500 mm
MODELS3 drive configurations
MOBILE TWIN-SHAFT SHREDDER · MADE IN GERMANY
01
APPLICATION FIRST
WHAT DO YOU NEED TO SHRED?
Bulky waste. Commercial waste. Construction & demolition waste.
Choose a feed stream to see the likely shaft discussion and the questions that need to be settled before quotation.
MATERIAL 01Construction & demolition (C&D) waste
LIKELY STARTING POINT
Hammer shaft
Discuss the C&D feed, concrete content, hammer tooling, mineral breaker bars and required screen configuration.
Final machine and shaft selection is subject to a material assessment by WERT UK.02
ONE PLATFORM
770INTERCHANGEABLE-SHAFT PLATFORM
THE PHANTOM PRINCIPLE
Reconfigure the process—without replacing the whole machine.

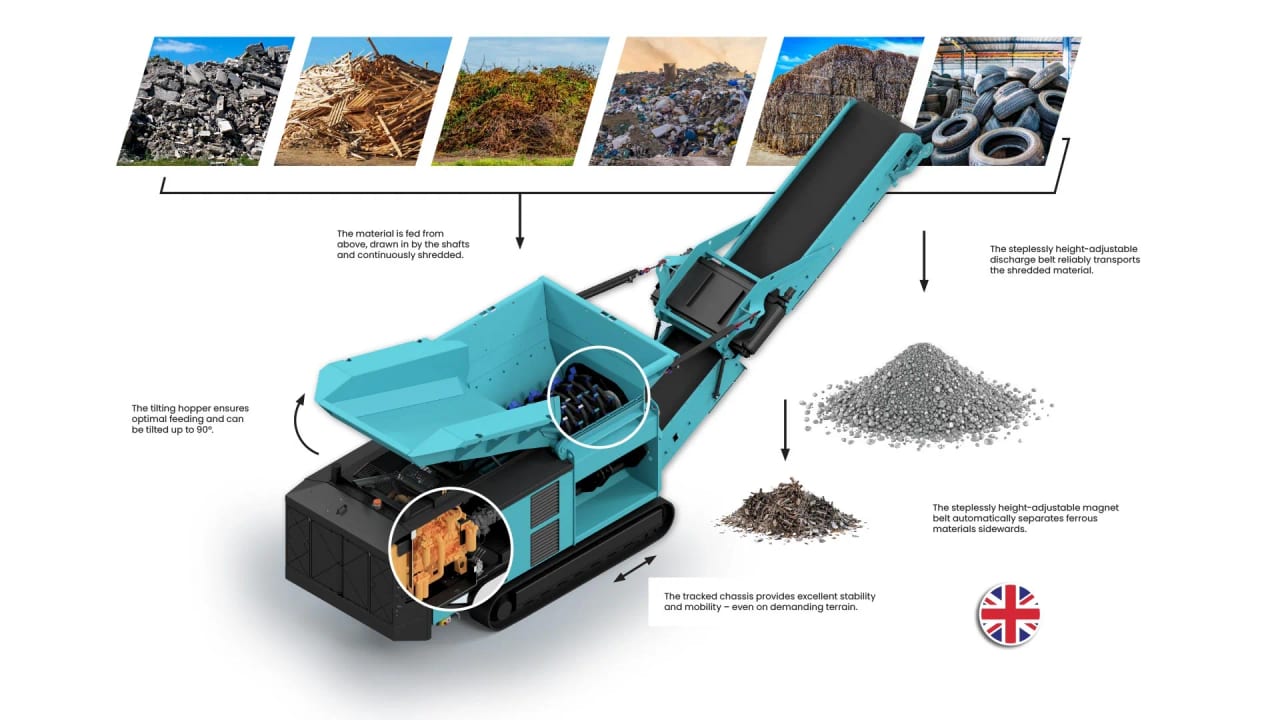

Two slow-running shafts draw the feed into the chamber. Shaft geometry changes the cutting action; breaker bars and screens shape recirculation and output; the tracked chassis and tilting hopper support site operation.
01

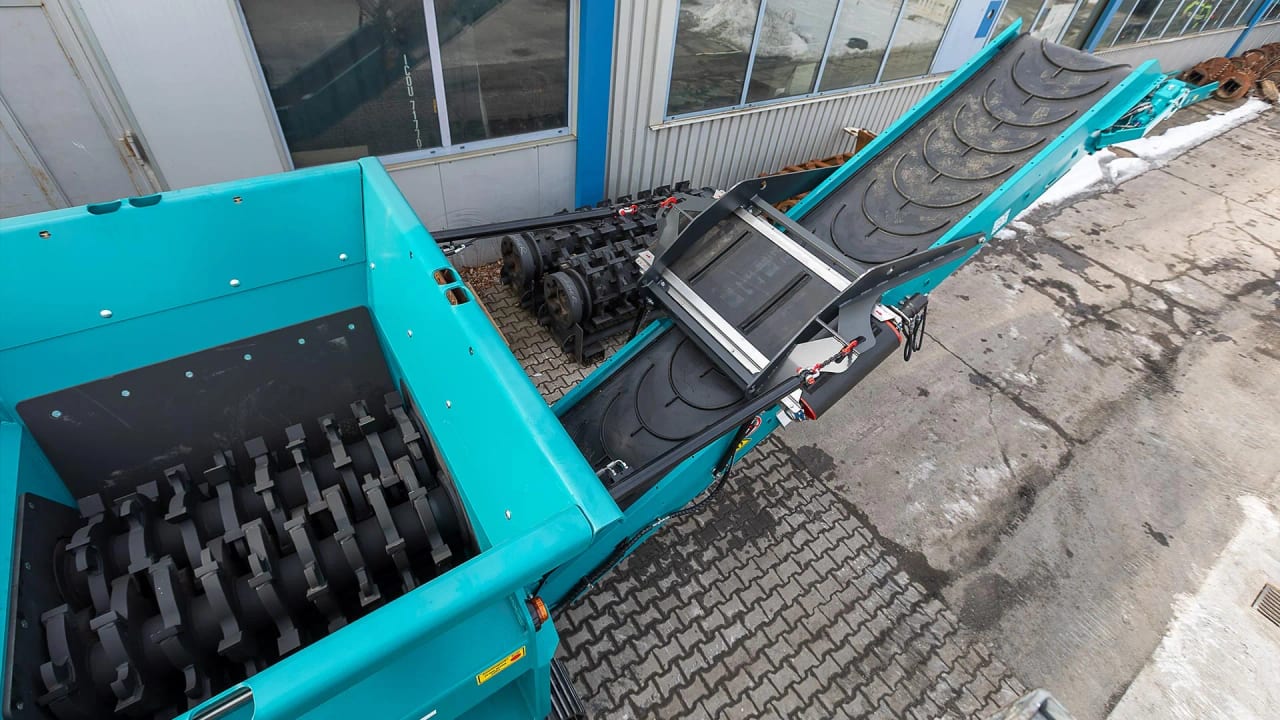

Interchangeable shafts
Star, combination, hammer and metal configurations for materially different streams.
02
Rapid change system
Designed to reduce the friction of moving from one assessed configuration to another.
03
Controlled output
Adjustable screen baskets and counter systems matched to material and target fraction.
04

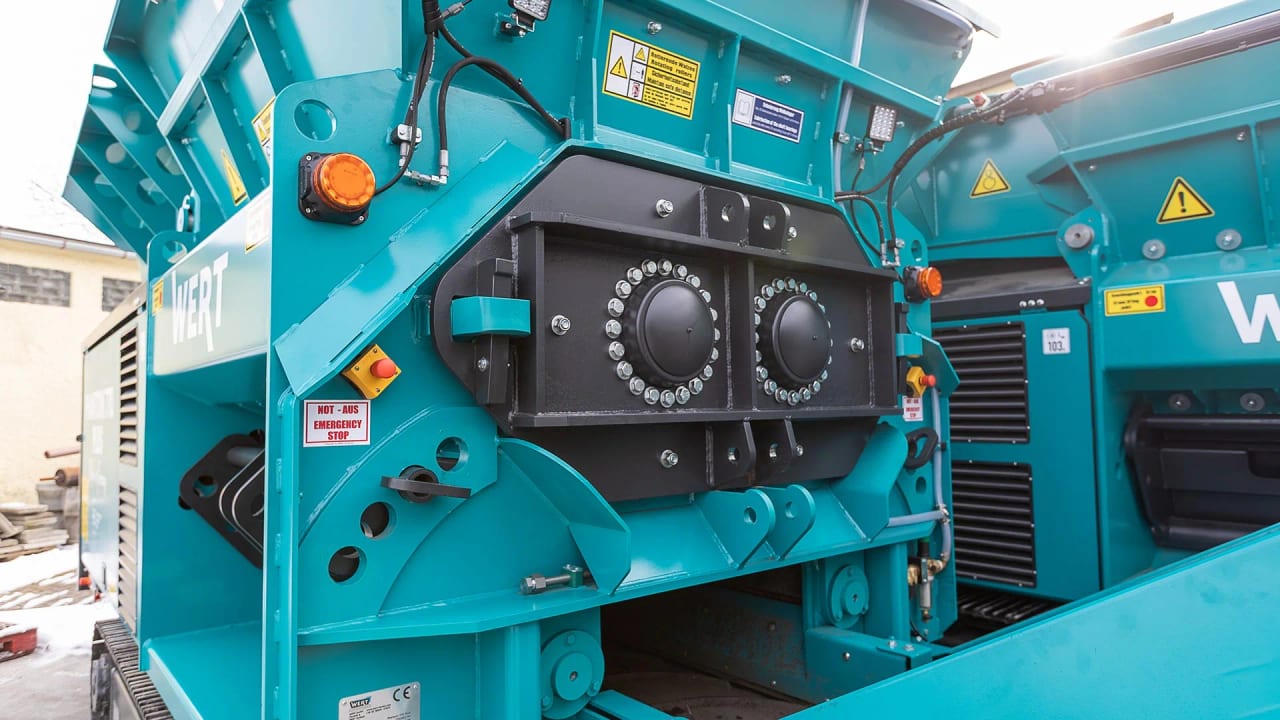

Service access

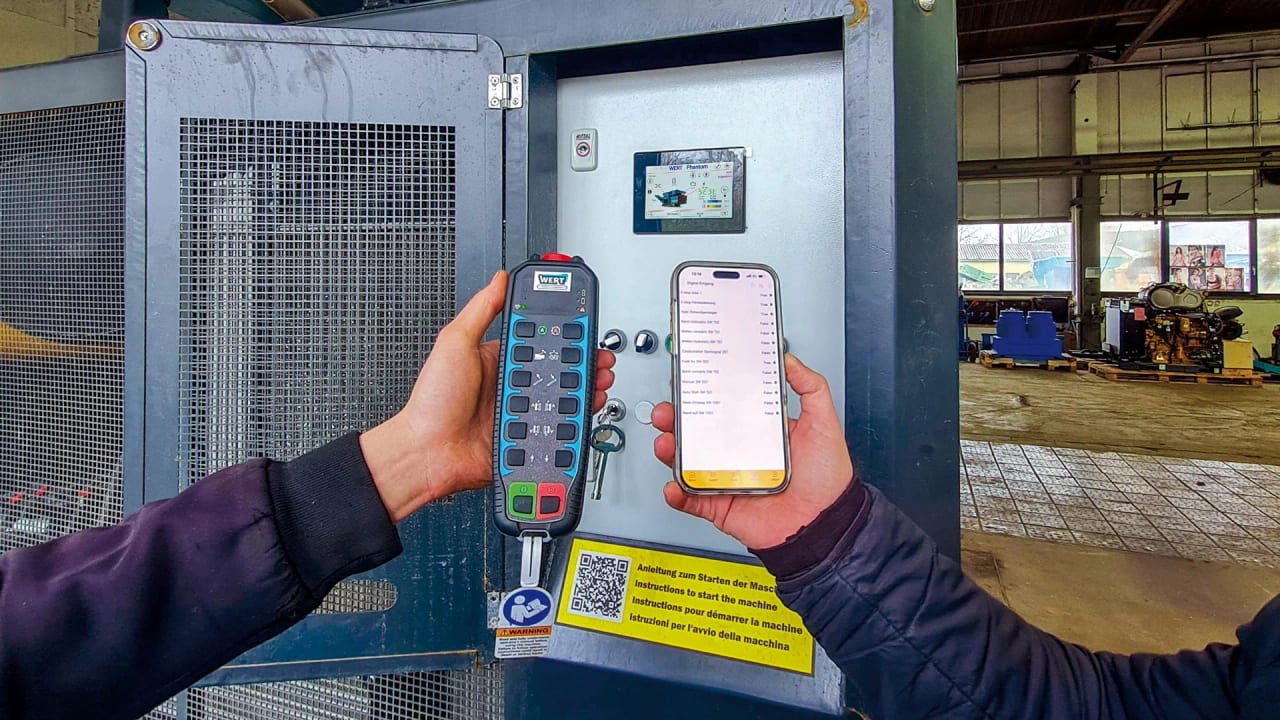

Modular construction, replaceable wear plates, remote control and optional remote maintenance.
03
POWER CONFIGURATIONS
STANDARD · PLUS · HYPERION
Choose around the duty cycle and site.
Every model carries the same stated shaft size and torque. Power source, infrastructure and application severity create the distinction.
02
Higher installed diesel powerCAT C9.3 diesel

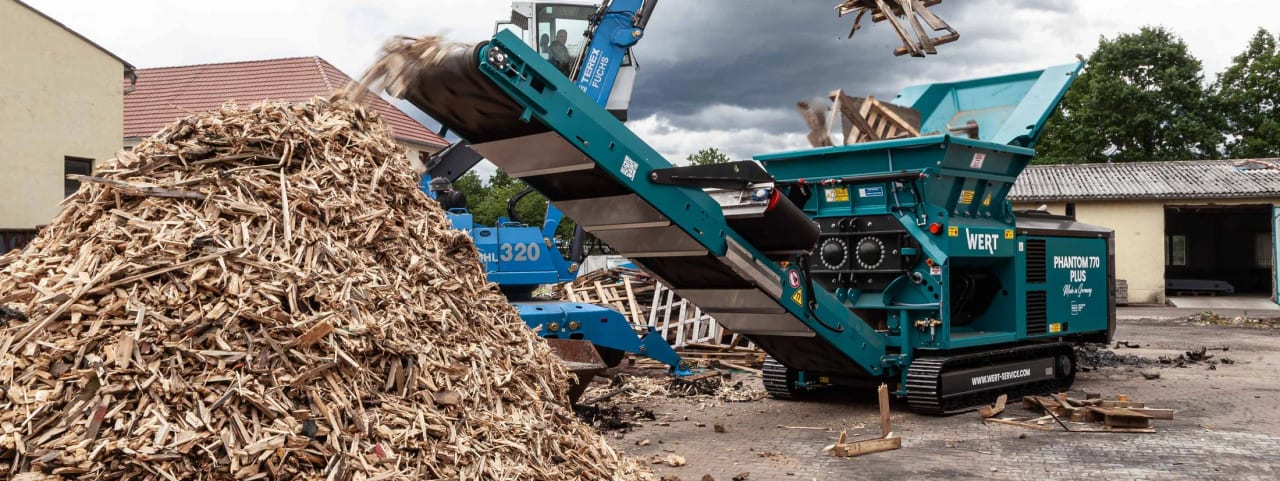

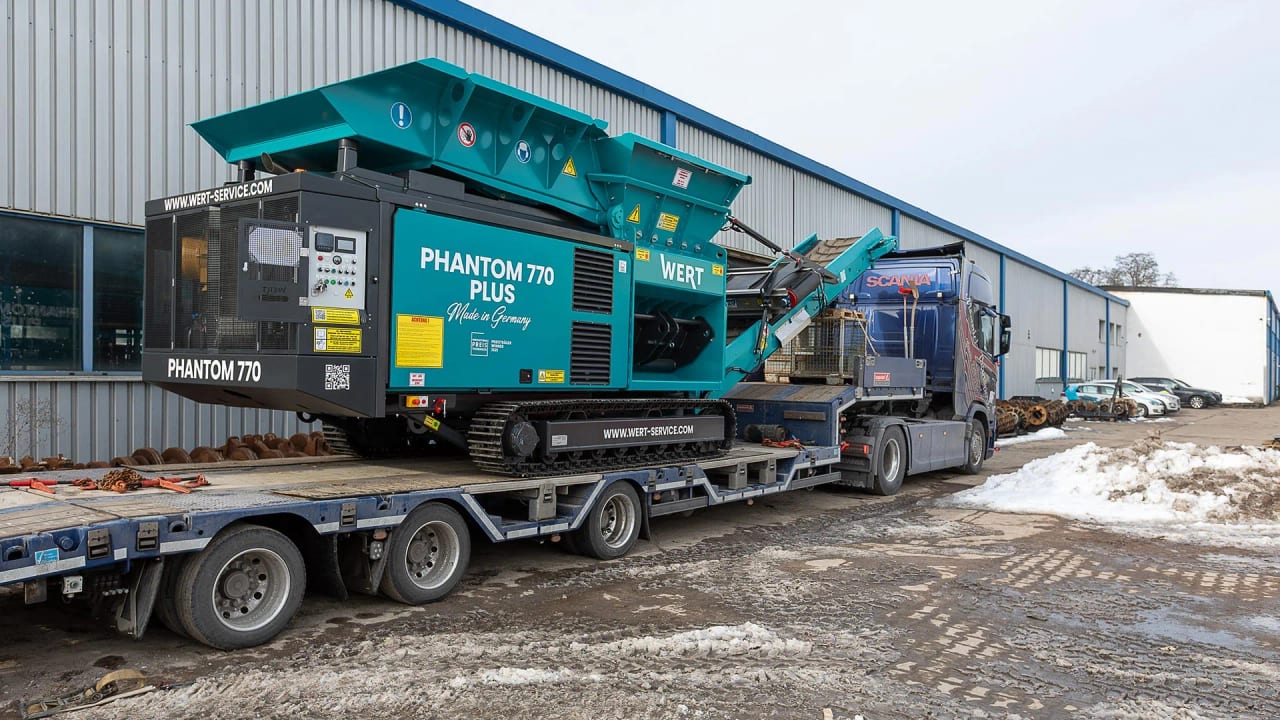

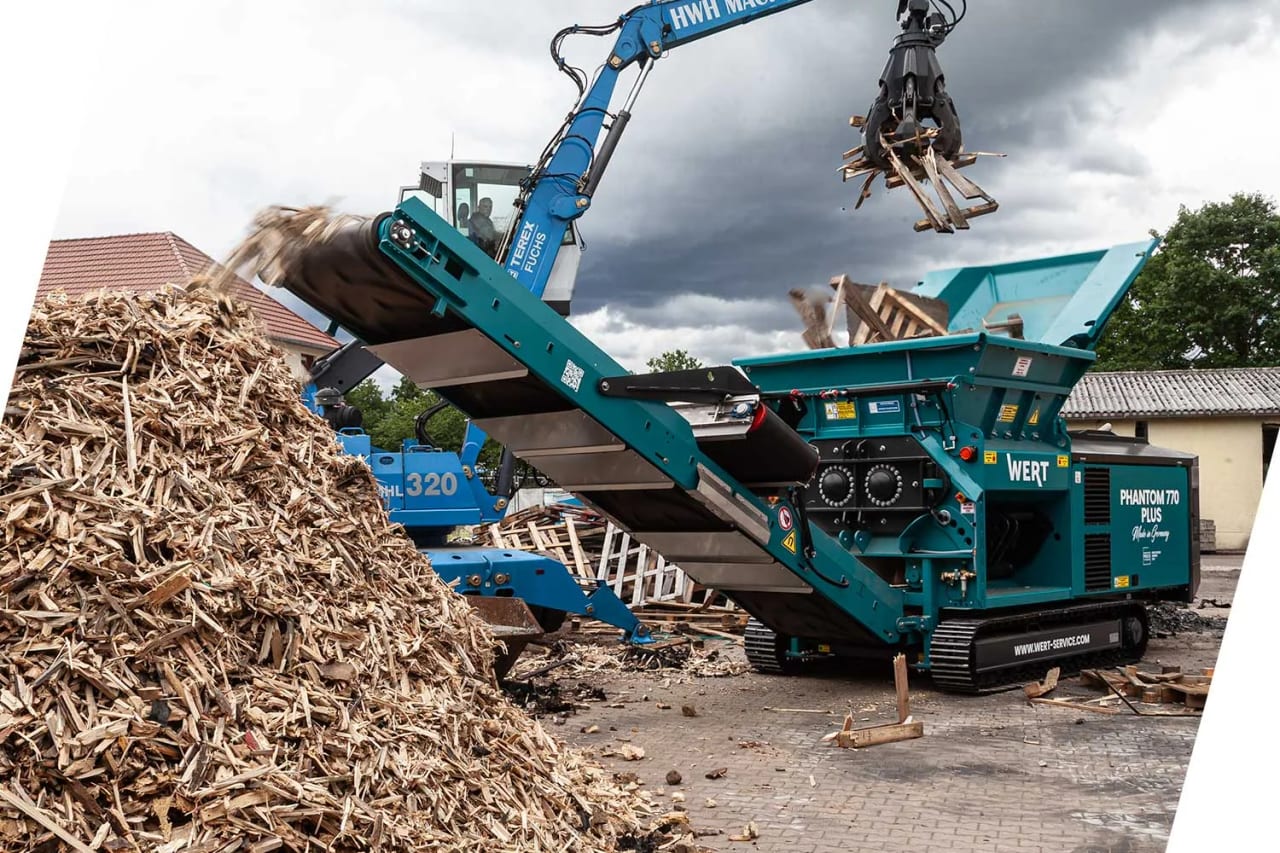

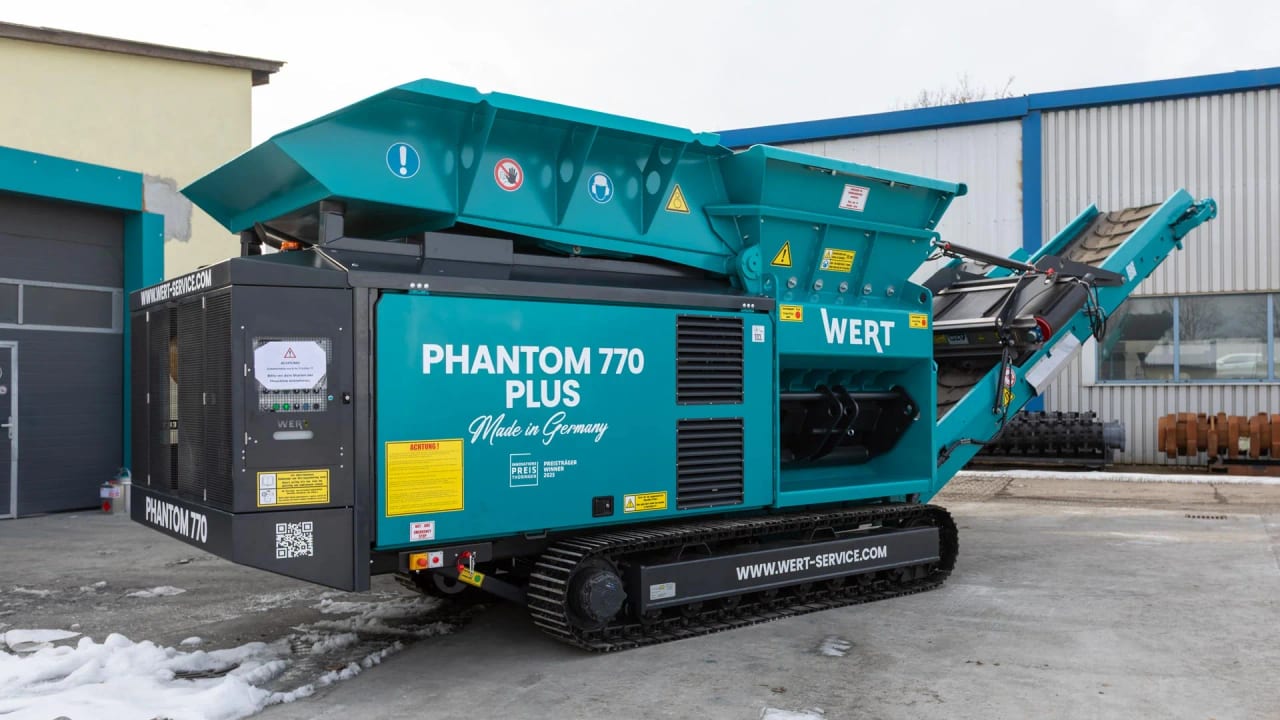

PHANTOM 770 Plus
The 310 kW CAT diesel configuration for applications whose verified operating case benefits from greater installed engine power.
- Power
- 310 kW
- Weight
- 20 t
- Torque
- 2 × 129,000 Nm
03
Electric primary shredding powerElectric + diesel travel

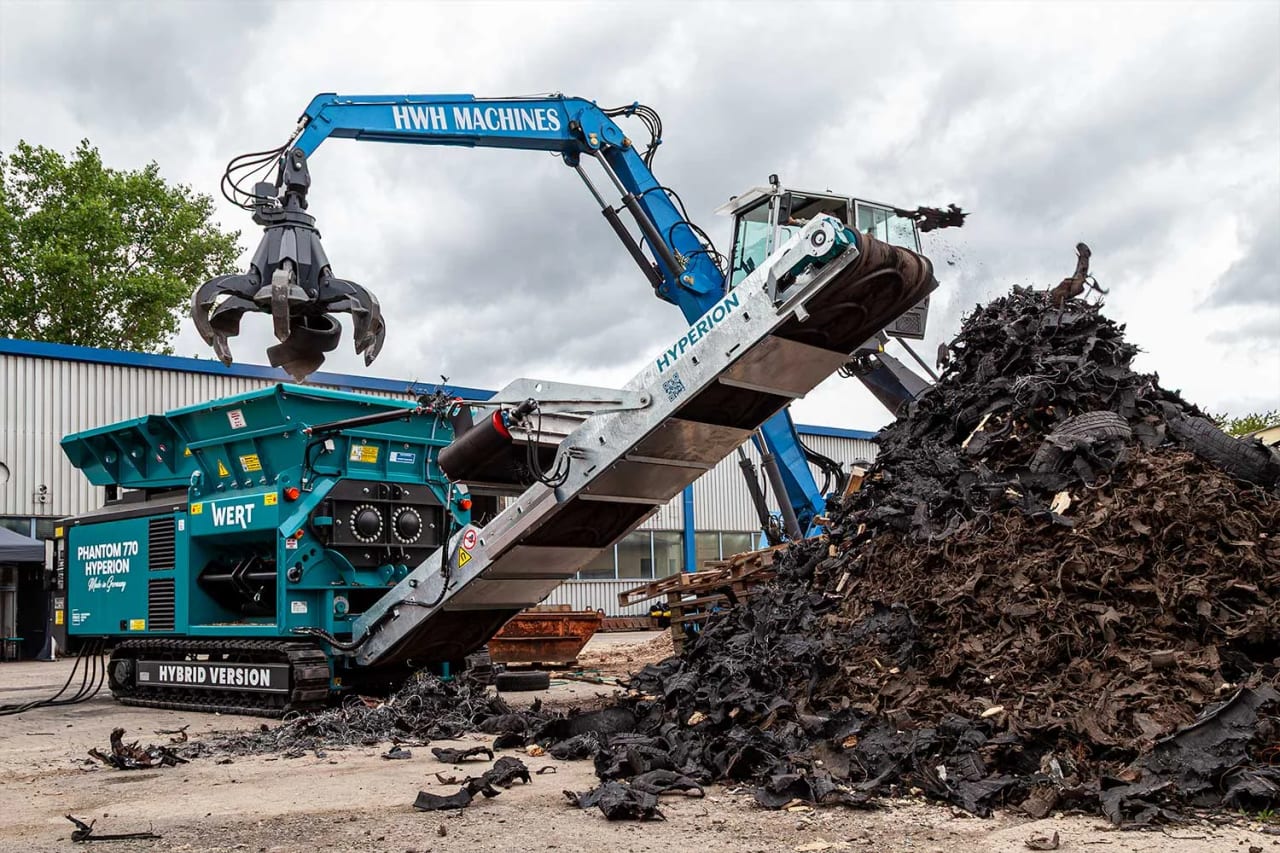

PHANTOM 770 Hyperion
A 250 kW electric primary drive with an 18.4 kW HATZ diesel travel system for sites evaluating an electrically powered processing configuration.
- Power
- 250 kW + 18.4 kW
- Weight
- 21 t
- Torque
- 2 × 129,000 Nm
RAPID CONFIGURATION CHANGETHE COMMERCIAL ADVANTAGE
Multiple material streams. Less reconfiguration friction.
Interchangeable shafts help one machine platform move between assessed waste streams. Reversible hammer tooling, synchronous or asynchronous operation and application-specific screens extend the configuration range.
- Complete shaft configurations
- Rotatable hammer tools
- Matched breaker bars and screens
- Service-friendly chamber access
04
MATERIAL RANGE
APPLICATIONS
Built around the waste streams you actually handle.
Start with bulky waste, commercial waste or construction & demolition waste, then assess feed behaviour, likely shafts, performance variables and maintenance considerations.
01Hammer shaft

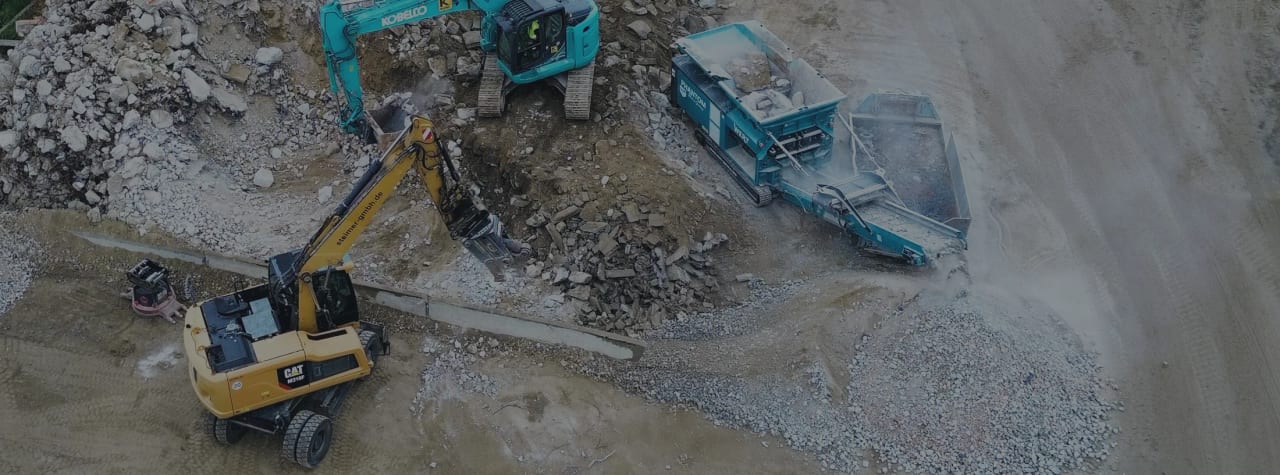

Construction & demolition waste
Process assessed construction & demolition (C&D) waste—including mixed debris, concrete, reinforced concrete and stone—with hammer shafts, controlled feed and the required screen system.
≈ 180–220 tonnes per hourmanufacturer-stated average
Explore application →
02Star shaft
Waste wood & timber
Process pallets, waste timber and selected bulky wood with shaft geometry chosen for draw-in behaviour, output definition and the contamination profile.
≈ 35–42 tonnes per hourmanufacturer-stated average
Explore application →
03Star shaft
Green waste & rootstocks
Open up fibrous green waste and irregular rootstocks with a configuration designed for draw-in, changing moisture and embedded soil or stone.
≈ 25–35 tonnes per hourmanufacturer-stated average
Explore application →
04Star shaft
Bulky & commercial waste
Reduce assessed bulky waste, commercial waste and variable municipal waste streams on an interchangeable-shaft platform that can be reconfigured around the feed.
≈ 18–25 tonnes per hourmanufacturer-stated average
Explore application →
05Star shaft
Tyres & rubber
Grip and reduce suitable tyre and rubber streams using shaft tooling selected around elasticity, steel content and the required downstream fraction.
≈ 13–18 tonnes per hourmanufacturer-stated average
Explore application →06Metal shaft
Light scrap & metals
Reduce selected light scrap, profiles and metal-bearing materials with a metal-shaft configuration and a tightly controlled feed assessment.
Explore application →
07Star shaft
Paper & plastics
Prepare paper, plastics and selected mixed materials with shafts chosen for controlled draw-in, tearing and the downstream sorting process.
≈ 12–19 tonnes per hourmanufacturer-stated average
Explore application →Important. Every material recommendation remains subject to representative assessment and final specification.
PHANTOM 770 · CORE FIGURES
Technical data, clearly stated.
Shared platform figures from current manufacturer data. The final machine and process configuration remains specific to the material and site.
- 01Torque
- 2 ×129,000Nm
- 02Construction & demolition waste
- ≈220t/h
- 03Shaft working length
- 1,500mm
- 04Stated discharge height
- 3,800mm
Across two shafts
Stated upper average
Per shaft
Manufacturer figure
Performance qualificationThroughput is not guaranteed. Material, shaft and screen configuration, feed and operating conditions change the result.
05
SHAFTS & TOOLING
CUTTING ACTION MATTERS

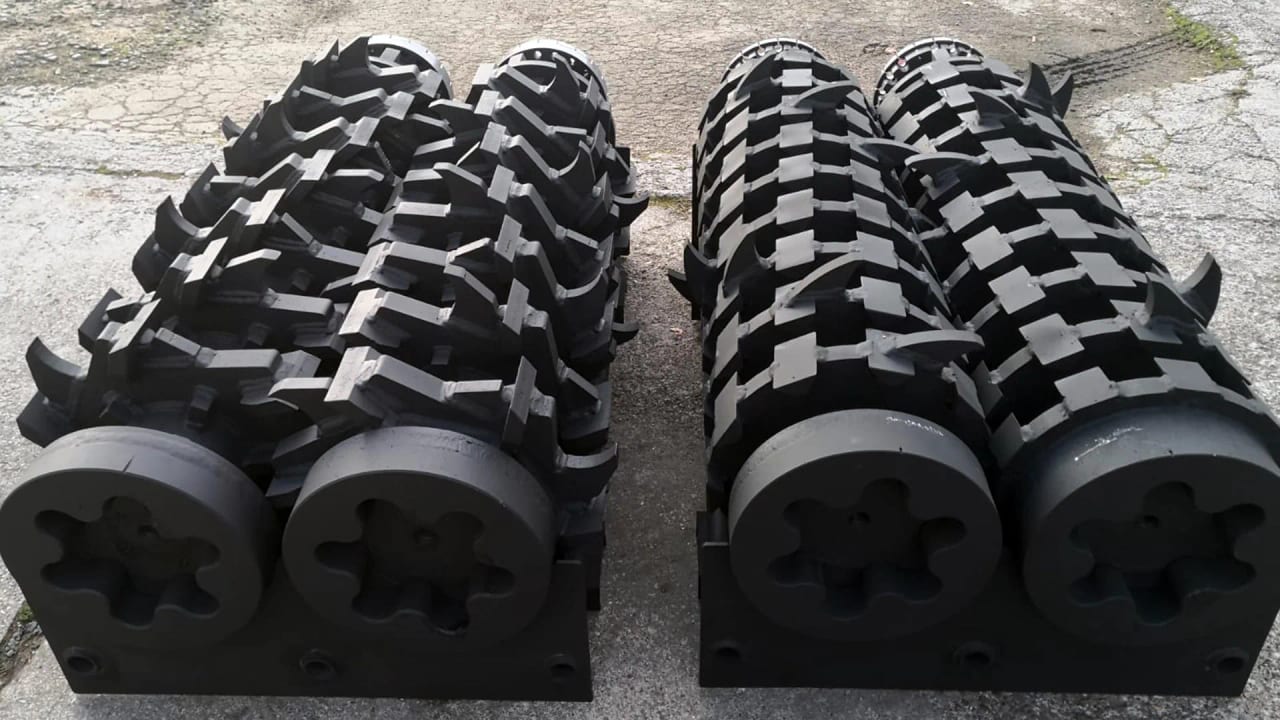

New, replacement and refurbished shaft systems.
WERT also manufactures and refurbishes shafts, tools and counter systems for a wide range of twin-shaft shredder makes and models, subject to technical assessment.
01

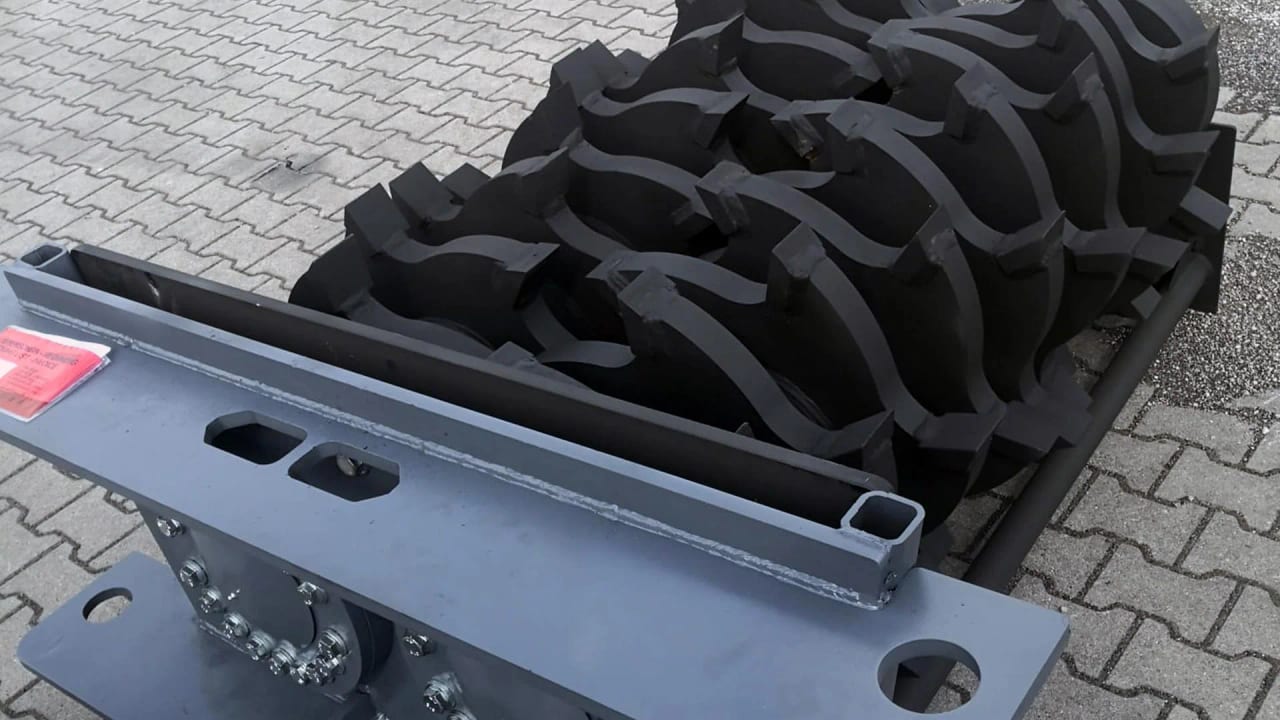

Star Shaft
A versatile draw-in configuration for waste wood, rootstocks, tyres, commercial waste, paper, mixed waste, sandwich panels and plastics.
Technical detail →
02

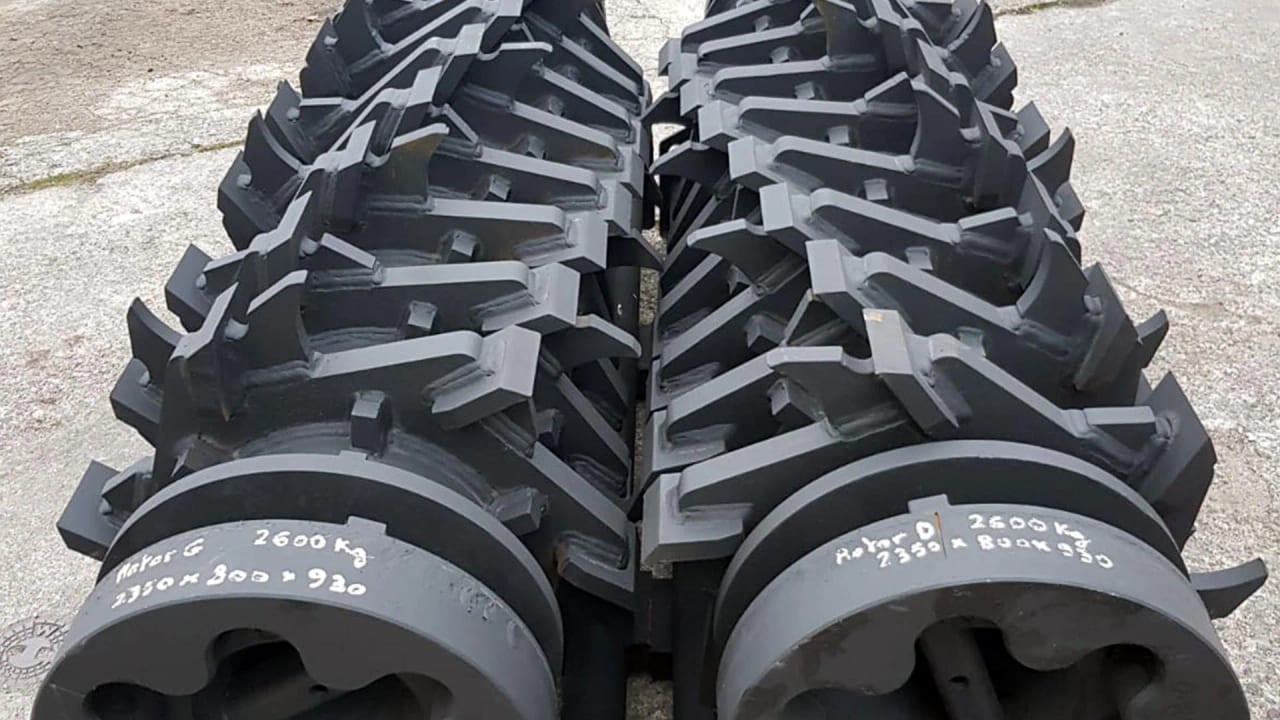

Combination Shaft
A configuration for wood, waste, tyres, green waste, rootstocks and paper where a more defined final output may be required.
Technical detail →
03

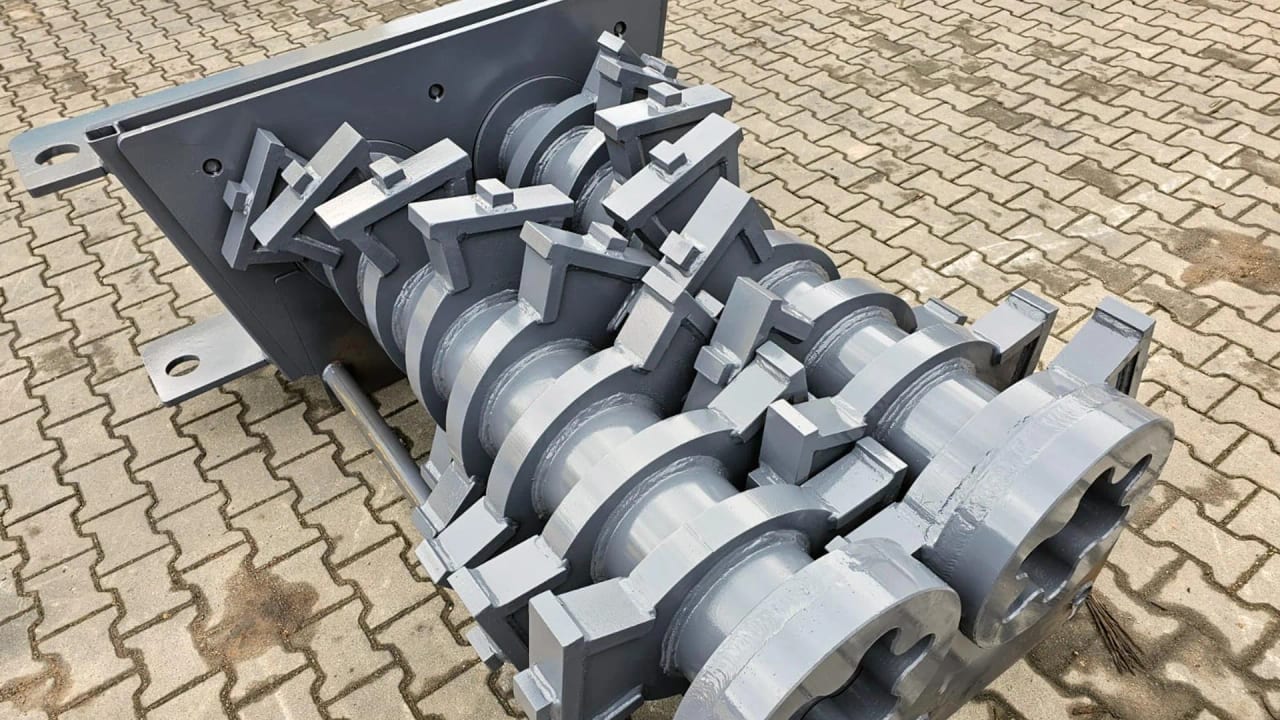

Hammer Shaft
A mineral-duty configuration for reinforced concrete, concrete, construction debris, stone and selected mineral material.
Technical detail →
04

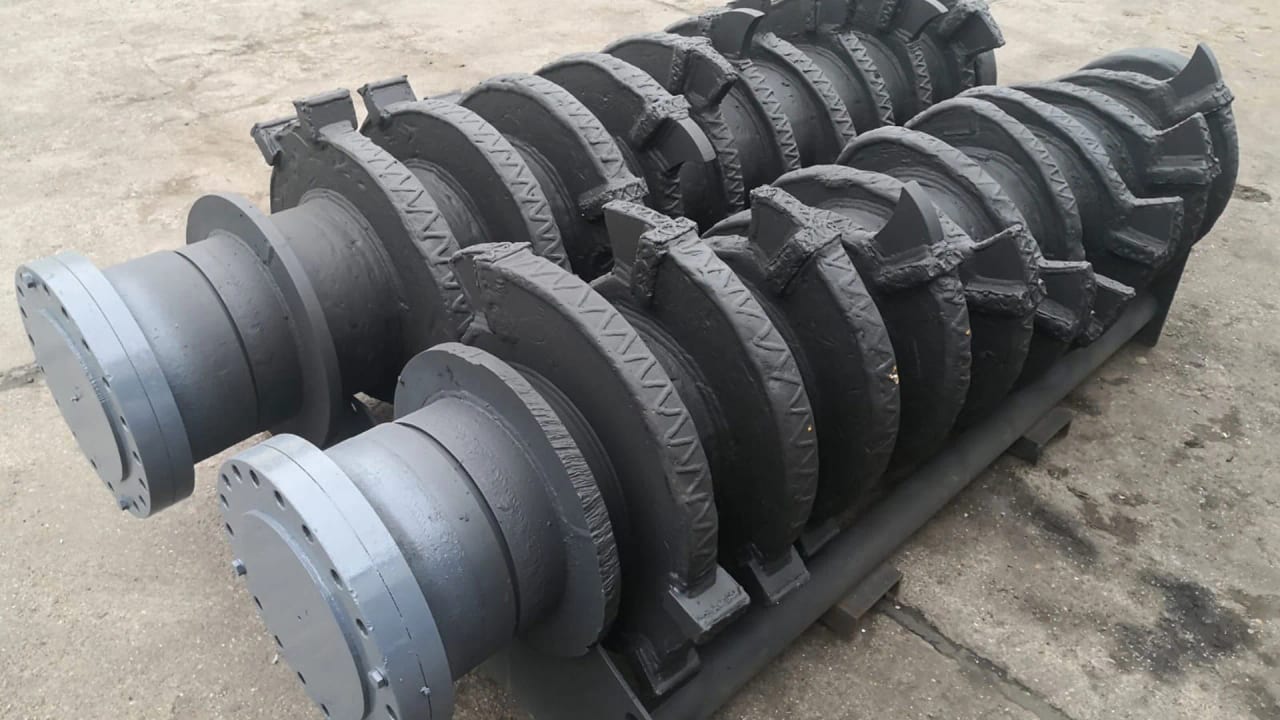

Metal Shaft
Purpose-selected tooling for light scrap, concrete railway sleepers, window profiles, sandwich profiles and other assessed metal-bearing material.
Technical detail →
05

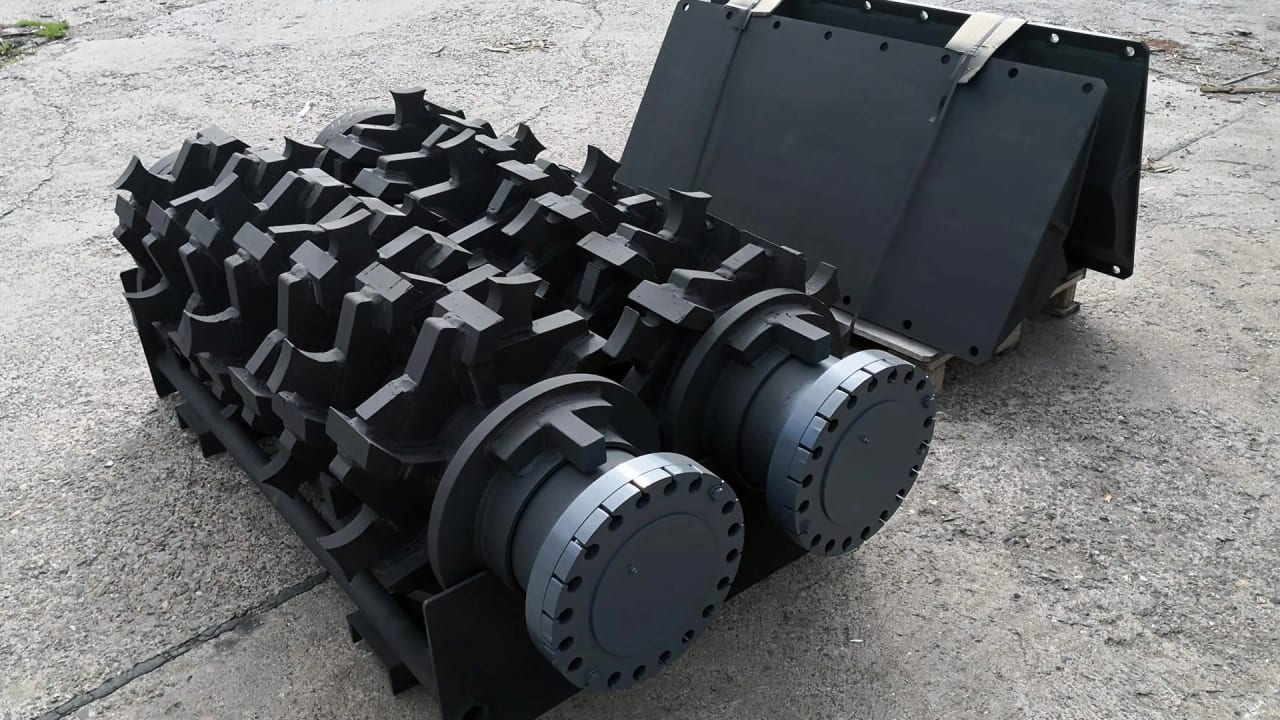

Wood & Waste Shafts
New and replacement shaft systems for waste wood, green waste, rootstocks, household waste, commercial waste, light scrap and paper.
Technical detail →
UK SERVICE & SUPPORT
The support conversation has equal weight with the machine sale.
Use structured routes for material assessment, demonstrations, quotations, parts identification, technical support and shaft enquiries. Scope, availability and timing are confirmed individually before any commitment is made.
06
SEE IT WORK
OFFICIAL WERT FOOTAGE
Machine, material and process.
Video frames load only when selected and never autoplay with sound.
OFFICIAL WERT VIDEO
PHANTOM: 2025 innovation-award nomination
Accessible video summary: Official WERT Recycling Technik film introducing the PHANTOM platform and its innovation-award case.
Caption status: availability has not been independently verified. The player requests English captions when the publisher provides them.
Transcript status: no reviewed transcript is currently published. The written summary above provides a concise alternative; contact WERT UK for help with the technical content.
Playing the video connects your browser to YouTube’s privacy-enhanced player.
OFFICIAL WERT VIDEO
Asphalt recycling with the WERT PHANTOM
Accessible video summary: Official WERT footage of the PHANTOM working in an asphalt-recycling application.
Caption status: availability has not been independently verified. The player requests English captions when the publisher provides them.
Transcript status: no reviewed transcript is currently published. The written summary above provides a concise alternative; contact WERT UK for help with the technical content.
Playing the video connects your browser to YouTube’s privacy-enhanced player.
OFFICIAL WERT VIDEO

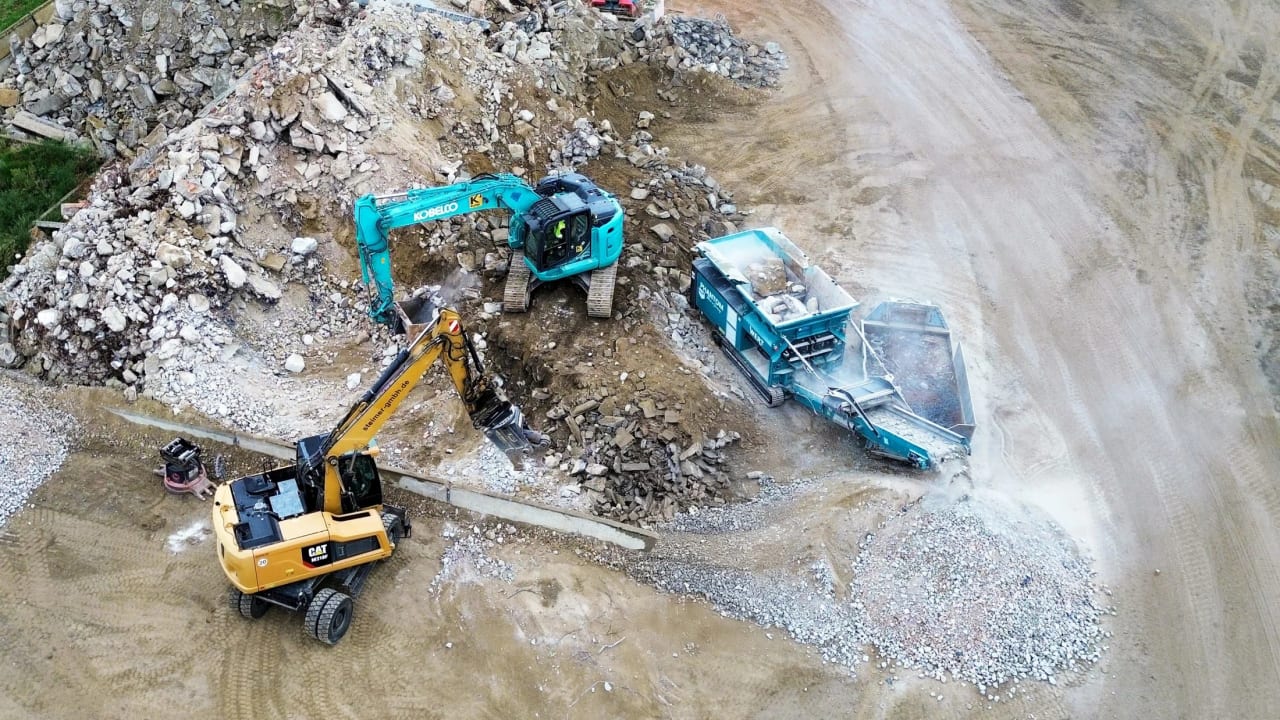

Construction and demolition recycling
Accessible video summary: Official WERT-channel footage showing the PHANTOM in a construction-material process.
Caption status: availability has not been independently verified. The player requests English captions when the publisher provides them.
Transcript status: no reviewed transcript is currently published. The written summary above provides a concise alternative; contact WERT UK for help with the technical content.
Playing the video connects your browser to YouTube’s privacy-enhanced player.
MADE IN GERMANY
Recycling engineering from Fambach, Thuringia.
WERT GmbH was founded in 2019. The manufacturer develops machines, shafts, tools and recycling solutions at its German operating and production site.
- 2019
- WERT GmbH founded
- 2025
- PHANTOM innovation award
- 3
- current power configurations
2025THURINGIA
INNOVATION AWARD
INNOVATION AWARD
07
TECHNICAL LIBRARY
DOWNLOADS
Current documents. Clear source hierarchy.
Use the 2026 English brochure and current technical data as the working reference. Final quoted specifications govern.
English · PDF
PHANTOM 770 brochure 2026
Download documentMay 2026 · Multilingual PDF
PHANTOM 770 technical data
Download documentEnglish · PDF
PHANTOM 770 Standard
Download documentEnglish · PDF
PHANTOM 770 Plus
Download documentEnglish · PDF
PHANTOM 770 Hyperion
Download document
English / German · PDF

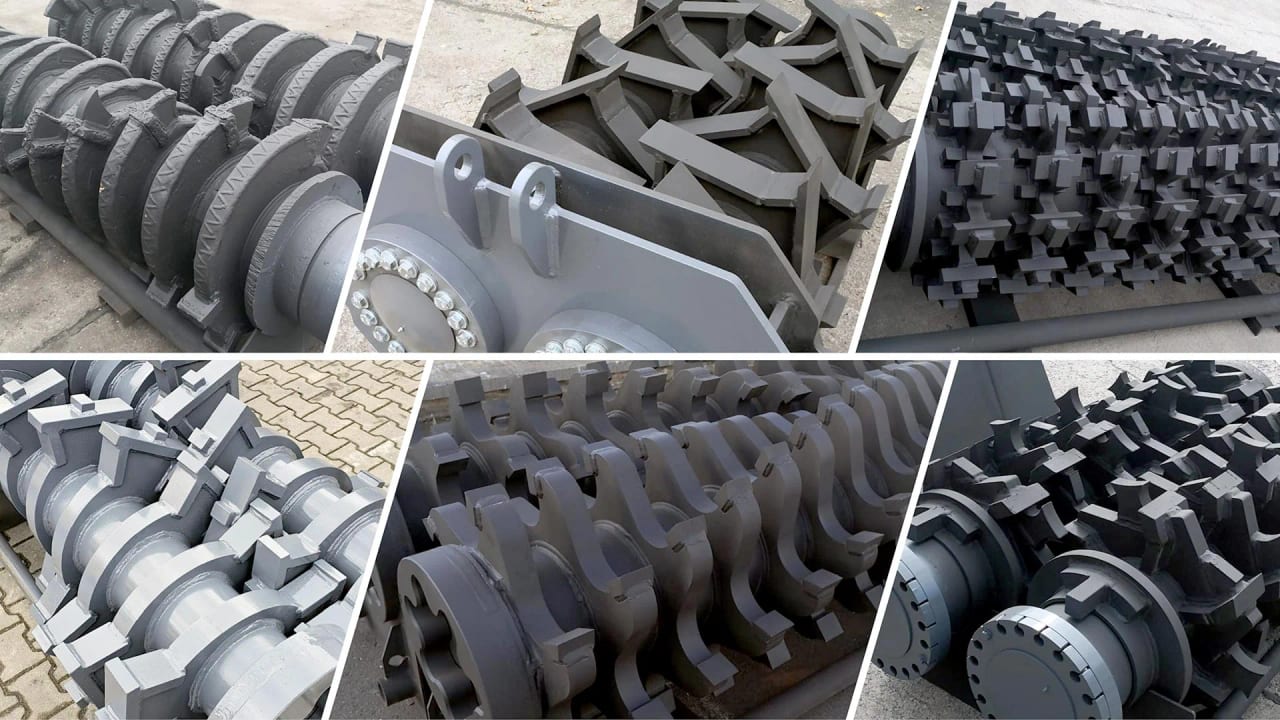

WERT tooling specialist
Download documentEnglish / German · PDF
WERT shaft comparison
Download documentMANUFACTURER-STATED AVERAGES
Throughput ranges in one place.
| Material | Average stated range |
|---|---|
| Construction debris | approximately 180–220 tonnes per hour |
 Waste wood | approximately 35–42 tonnes per hour |
 Green waste | approximately 25–35 tonnes per hour |
 Commercial waste | approximately 18–25 tonnes per hour |
 Rubber | approximately 13–18 tonnes per hour |
 Rootstocks | approximately 22–30 tonnes per hour |
 Paper | approximately 12–19 tonnes per hour |
Performance qualification. Performance figures are manufacturer-stated averages and are not guaranteed. Actual throughput will vary according to material, shaft configuration, screen-basket settings, material feed and operating conditions.
NEXT STEP
Let’s test your material.
Tell us whether you process bulky waste, commercial waste, construction & demolition waste or another stream. WERT UK will help identify the machine and shaft configuration to assess.
